Steam Locomotive Walschaert Valve Gear Animation
(Note: 269K GIF, 1.3 minute download @ 56kbps)

[ Add Choo-Choo Sound (small pop window) ]

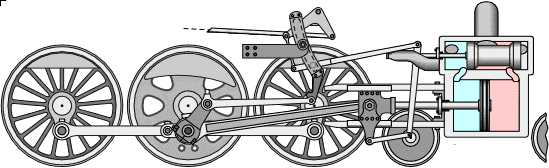

Steam Locomotive Valve Gear Animation - Forward

Note: The sound will not necessarily synchronize with the animation. An effort was made to make the sound the correct speed for the animation; however, the rendering speed of animated GIFs can vary with different browsers and systems.

The full size locomotive with its 75 inch drivers would be going about 5 MPH (8 Km/h).
