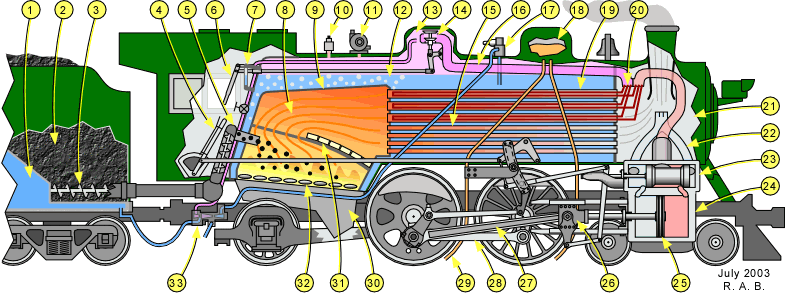

Steam Locomotive Workings Illustration

Steam Locomotive Workings Illustration

1. Water Compartment
2. Coal Bunker
3. Worm Coal Conveyor
4. Reverse Lever (Johnson Bar)
5. Stoker
6. Throttle Lever
7. Water Gauge
8. Firebox
9. Crown Sheet		 10. Safety Valve
11. Turbine-Generator
12. Boiler Water
13. Steam Dome
14. Throttle Valve
15. Boiler Tubes
16. Dry Pipe
17. Water Delivery Check Valve		 18. Sand Dome
19. Flue Tubes
20. Superheater Tubes
21. Smokebox
22. Blast Pipe
23. Steam Chest
24. Cylinder
25. Piston		 26. Crosshead
27. Main Rod
28. Side Rod
29. Sand Pipe
30. Ashpan Hopper
31. Brick Arch
32. Grate
33. Injector
For valve gear components, see Walschaert Diagram. (54K GIF)
