1936 Bugatti Atlantic Replica Project
RABUGGI - 3D Computer Model

You can download a SketchUp (.skp) file that can be viewed (orbit, pan, zoom) with

  • SketchUp Viewer (Mac or Win), a free program for viewing only; or, with

  • SketchUp - Make (Mac or Win), a free and powerful 3D modeling / editing progam.

skp Download: RABUGGI-v3m.skp
[8.3 MB file: ~71 sec. @ DSL speed of 1.024 Mbps]
zip Download: RABUGGI-v3m.skp.zip (smaller download, un-zips to same .skp file as above)
[3.1 MB file: ~26 sec. @ DSL speed of 1.024 Mbps]


Below are 2D exports (JPEG) of views from the SketchUp 3D model of RABUGGI...

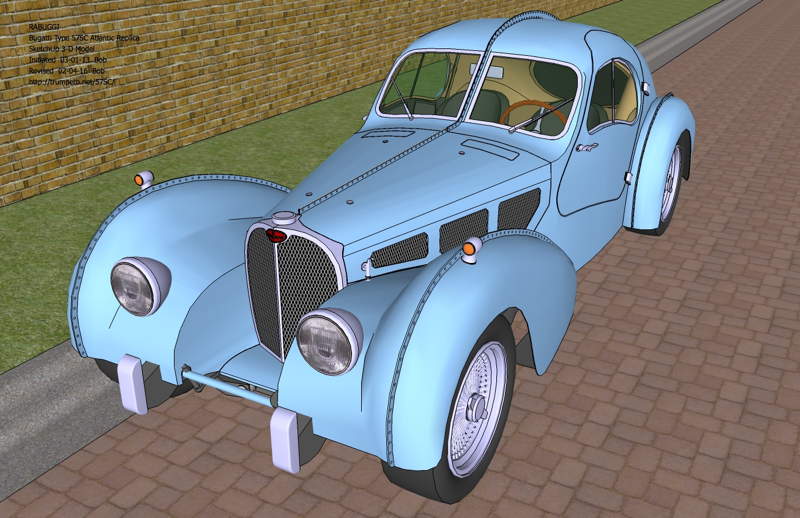

left front quarter

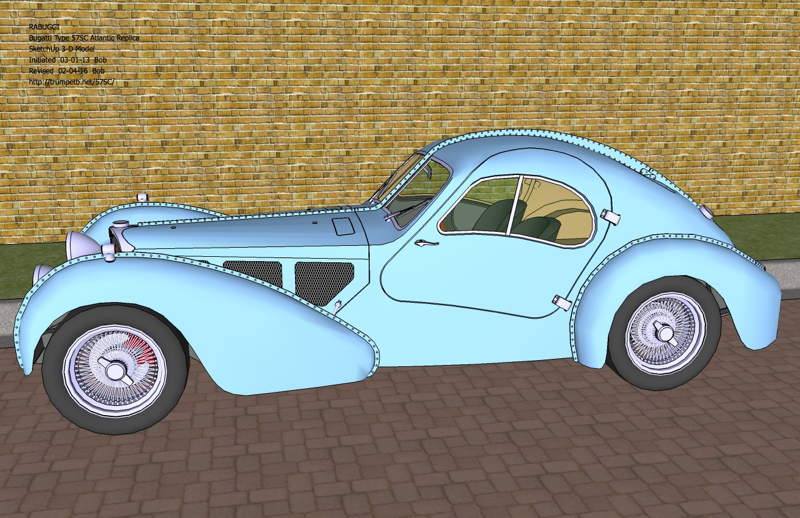

left side

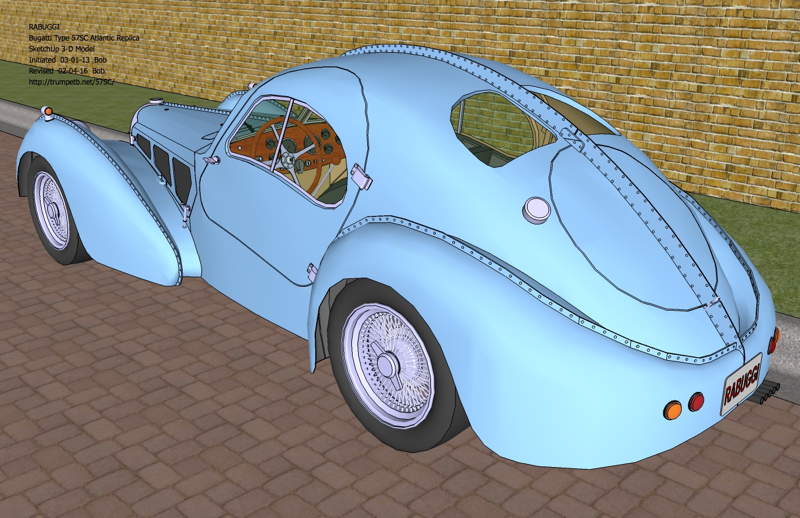

left rear quarter

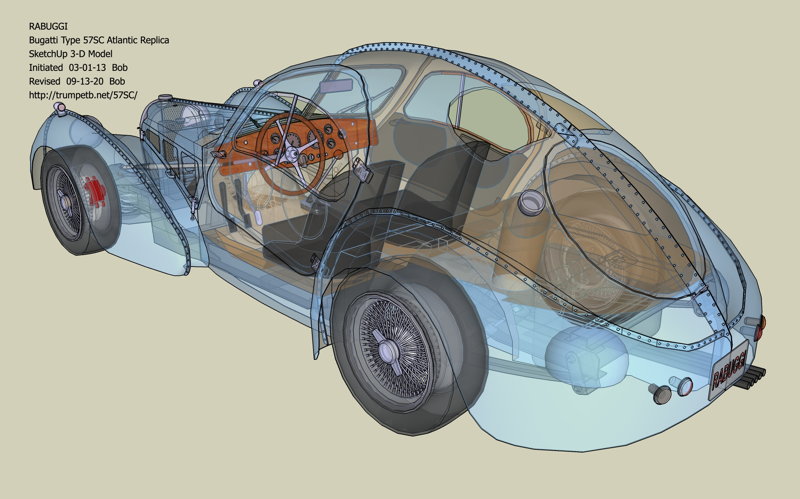

left rear quarter

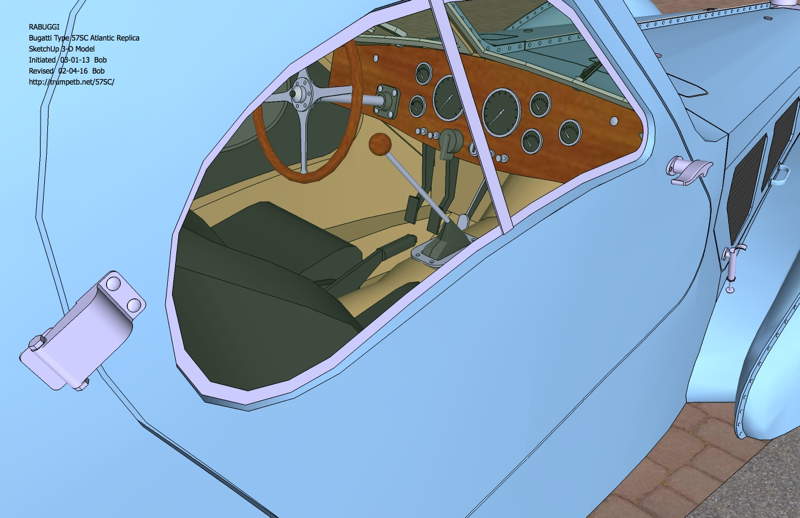

panel

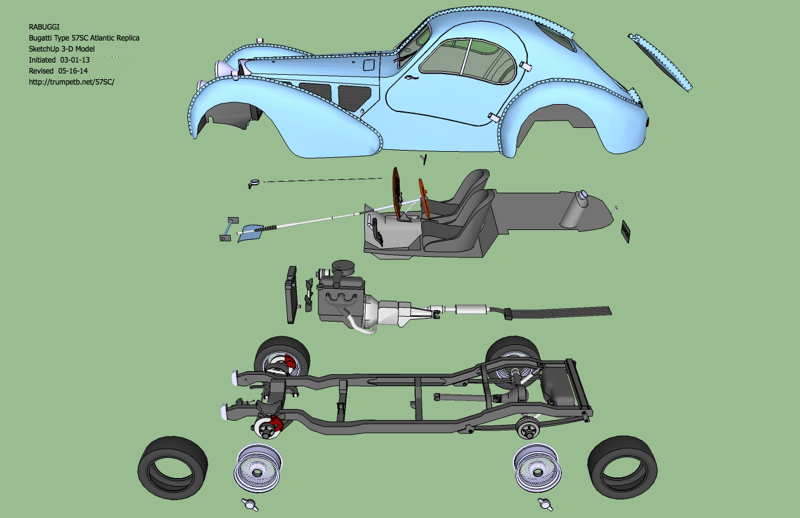

exploded

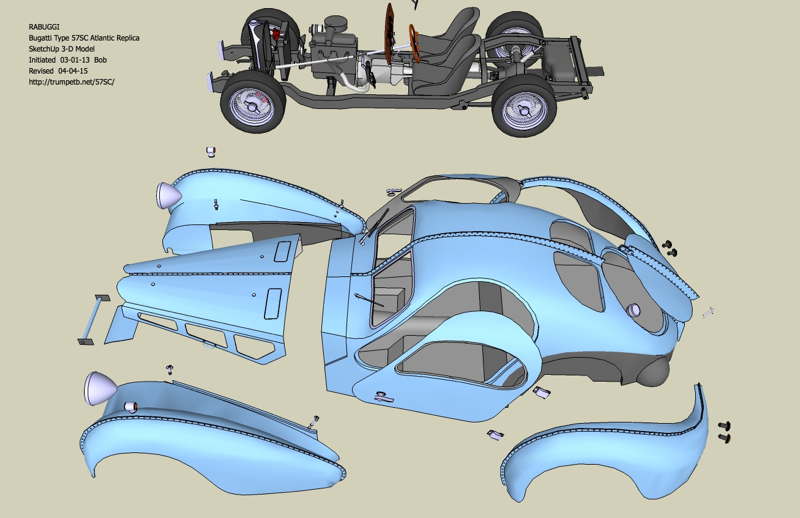

paint exploded

RABUGGI chassis in a browser based 3D viewer by Sketchfab...

RABUGGI chassis by tbob on Sketchfab. [Click & drag to orbit. Shift-click & drag to pan. Scroll to zoom.]
